Product Overview

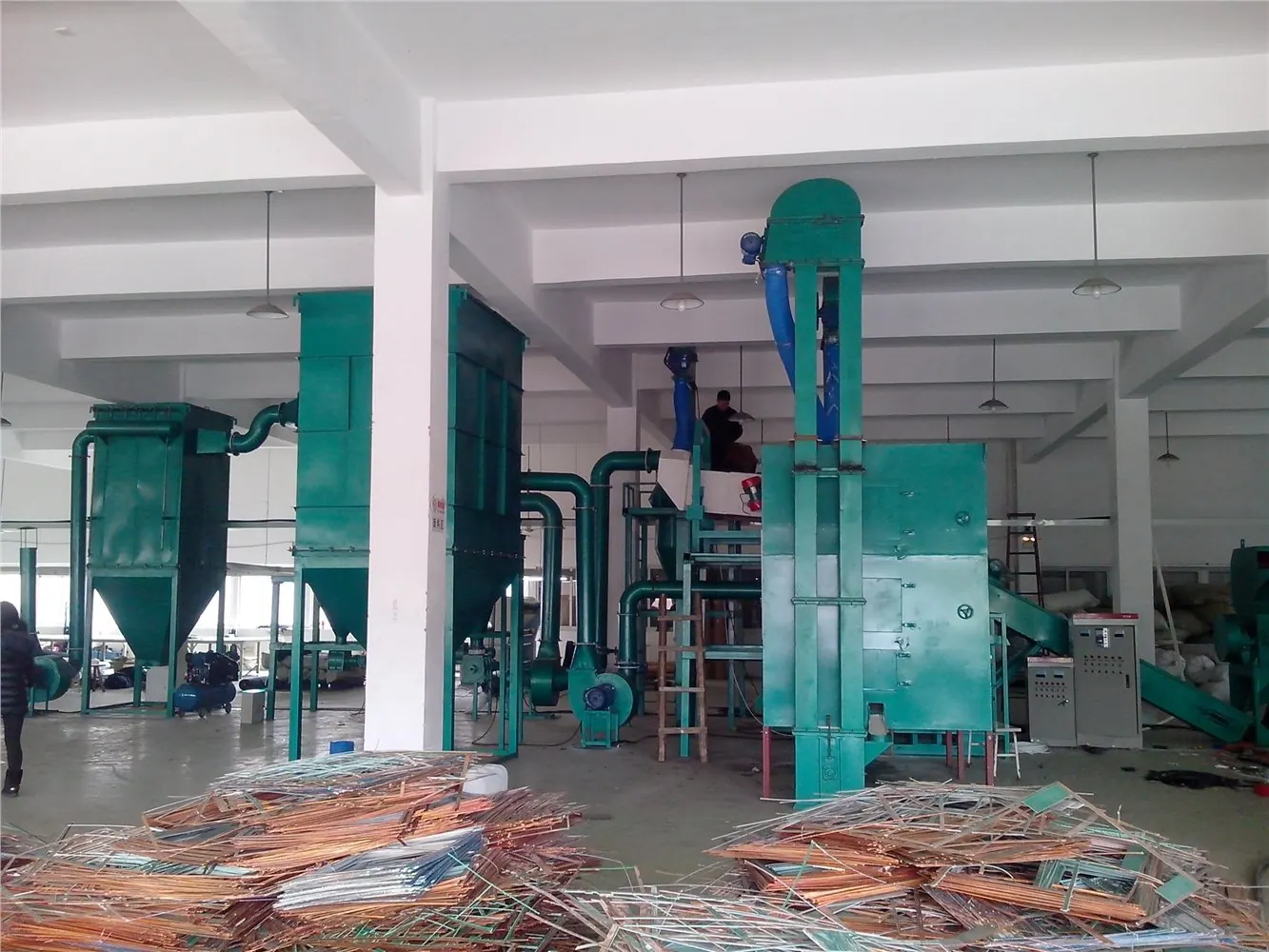

A dry processing line for recovering copper-rich material from copper-clad laminates, PC boards and manufacturing offcuts.
Working Principle
Crushing, milling, classification and electrostatic separation liberate and divide conductive and non-conductive fractions.
Key Features
- Configurable for the customer’s feed material and target output.
- Designed for integration with upstream and downstream equipment.
- Service access and operating controls can be adapted to the final line layout.
- Dust, gas, electrical, fire and explosion controls must be selected for the actual application.
Technical Specifications
- 500 kg configuration: 500–600 kg/h, 66 kW, 95 m²
- 1,000 kg configuration: 1,000–1,500 kg/h, 172 kW, 200 m²
Technical review note: Confirm material basis, product purity and final equipment list.
Processing Materials
- Copper-clad laminate
- PC board
- PCB offcuts
Applications
- Industrial recycling and resource recovery plants
- Production scrap processing where the listed feedstock is applicable
- Integration into a complete recycling production line
Advantages
- Application-led equipment configuration rather than a generic package
- Mechanical integration with feeding, conveying, separation and collection stages
- Support for layout planning, installation guidance and operator training
FAQ
How is the correct model selected?
Selection depends on representative feedstock, size, composition, required throughput, target products, operating hours, site utilities and local safety requirements.
Are the published specifications guaranteed?
No. Values above are preserved from the source page. Final guaranteed data must be stated in the approved technical proposal for the selected configuration.
Can the equipment be tested with customer material?
Representative material testing is recommended whenever feedstock variability may affect capacity, separation or safety.
Request Quote
Please provide material photos or samples, required capacity, target products, installation country, site power supply and project timeline.
