Product Overview

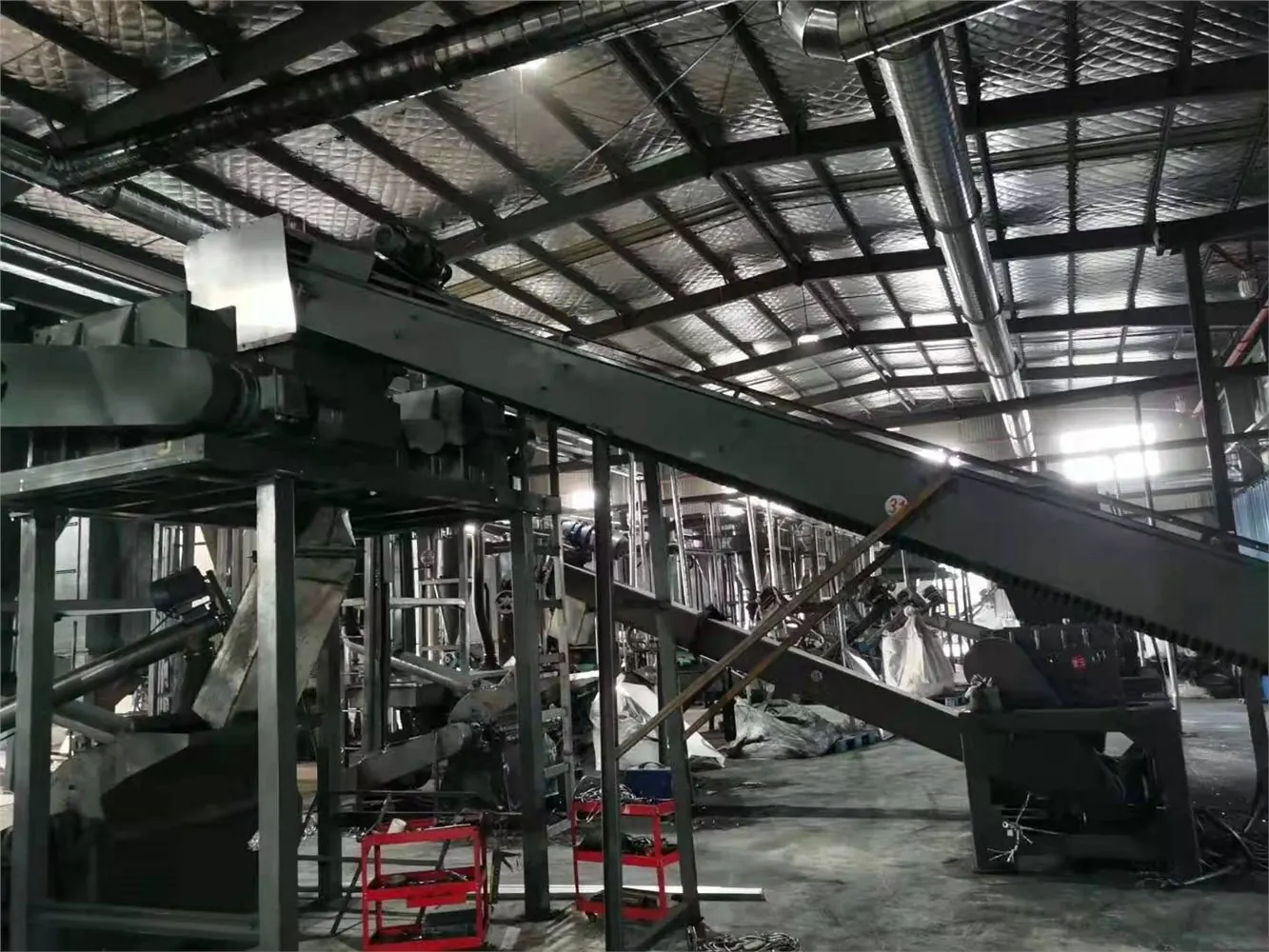

A compact mechanical line for liberating and separating active material, ferrous metal, copper, aluminum and separator material from small lithium batteries.
Working Principle
Batteries are reduced below 10 mm, finely crushed and classified. Cyclone and pulse dust collection capture fine material while magnetic and physical separation recover metal fractions.
Key Features
- Configurable for the customer’s feed material and target output.
- Designed for integration with upstream and downstream equipment.
- Service access and operating controls can be adapted to the final line layout.
- Dust, gas, electrical, fire and explosion controls must be selected for the actual application.
Technical Specifications
- Capacity: 0.2–1 t/h (list summary: 500–1,000 kg/h)
- Size: 26,311 × 6,121 × 6,350 mm
- Power: ≤129.25 kW
- Supply: 380 V / 50 Hz, 200 kVA
Technical review note: Recovery-rate claims and installation requirements must be confirmed for the selected configuration.
Processing Materials
- Mobile phone batteries
- small consumer lithium-ion cells
Applications
- Industrial recycling and resource recovery plants
- Production scrap processing where the listed feedstock is applicable
- Integration into a complete recycling production line
Advantages
- Application-led equipment configuration rather than a generic package
- Mechanical integration with feeding, conveying, separation and collection stages
- Support for layout planning, installation guidance and operator training
FAQ
How is the correct model selected?
Selection depends on representative feedstock, size, composition, required throughput, target products, operating hours, site utilities and local safety requirements.
Are the published specifications guaranteed?
No. Values above are preserved from the source page. Final guaranteed data must be stated in the approved technical proposal for the selected configuration.
Can the equipment be tested with customer material?
Representative material testing is recommended whenever feedstock variability may affect capacity, separation or safety.
Request Quote
Please provide material photos or samples, required capacity, target products, installation country, site power supply and project timeline.
