01
Contaminated Air Inlet
Contaminated process air enters through the inlet duct and is guided into the first internal treatment chamber.
Environmental Equipment
UV Photolysis Purification Equipment
UV Photolysis Purification Equipment is designed for selected industrial exhaust streams containing odor compounds and gaseous organic contaminants. The system uses high-energy ultraviolet radiation to initiate photochemical reactions within the treatment chamber. UV energy can break selected molecular bonds and generate reactive species that participate in oxidation reactions.
01 / Equipment overview
UV Photolysis Purification Equipment overview
A ducted UV photochemical stage after pretreatment and, when required, before adsorption, plasma, catalytic treatment or scrubbing.
UV Photolysis Purification Equipment is designed for selected industrial exhaust streams containing odor compounds and gaseous organic contaminants. The system uses high-energy ultraviolet radiation to initiate photochemical reactions within the treatment chamber. UV energy can break selected molecular bonds and generate reactive species that participate in oxidation reactions. Depending on exhaust composition and operating conditions, suitable odor compounds and organic contaminants may be transformed into smaller or less odorous compounds. The equipment is generally used as part of an engineered exhaust-treatment system and may require upstream pretreatment or downstream polishing depending on particulate loading, oil mist, moisture, contaminant concentration and emission requirements.
content-manifest.json flags product-91 as a source placeholder. Lamp type, wavelength, airflow, power, residence time, ozone control and removal performance are not given as verified values.
02 / Operating Principle

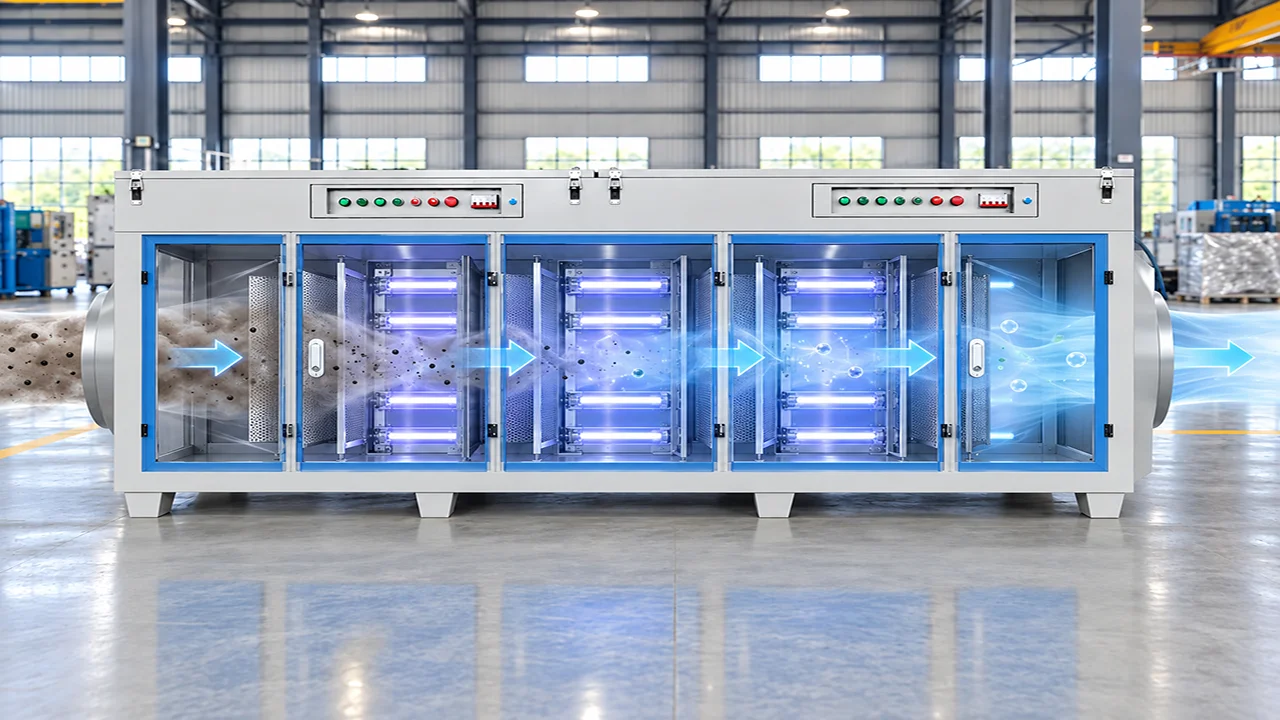

How the UV Photolysis Purification Equipment Works
Contaminated exhaust enters the purification cabinet through the inlet duct and is distributed across the internal treatment chambers. As the gas passes through the UV photolysis modules, high-energy ultraviolet radiation breaks down odor molecules and VOC compounds and promotes oxidation reactions. The treated air then passes through the downstream purification section and is discharged through the outlet duct.
02
Airflow Distribution
The incoming gas stream is distributed across the treatment section so it can pass evenly through the UV reaction modules.
03
UV Photolysis Treatment
High-energy UV lamps irradiate the exhaust stream, breaking molecular bonds in odor compounds and VOCs and promoting further oxidation of the reaction products.
04
Treated Air Discharge
After photolysis and downstream treatment, the purified airflow is collected and discharged through the outlet duct.
High-Energy UV Photolysis
Multi-Stage Exhaust Treatment
Treated Air Outlet Discharge
03 / Suitable feedstock
Suitable materials
Odorous industrial exhaust
Selected exhaust containing odor-causing gaseous compounds.
Selected VOC exhaust
Compatible low- to moderate-concentration VOCs after composition and safety review.
Resin and polymer process exhaust
Selected gaseous contaminants from compatible resin or polymer processing.
Coating and surface-treatment exhaust
Selected odor and organic exhaust from compatible coating operations.
Wastewater and sludge odor
Selected odor streams after moisture and aerosol control.
Recycling auxiliary exhaust
Selected gaseous pollutants after source capture and pretreatment.
04 / Machine Architecture

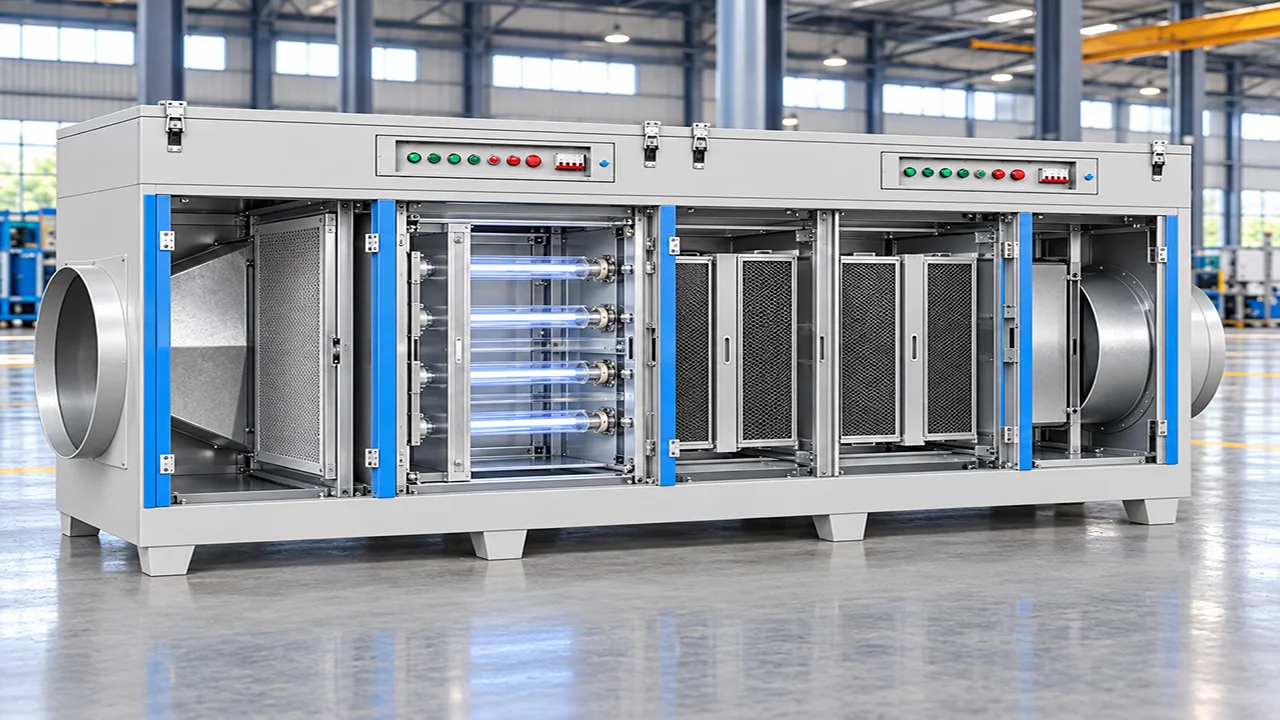

Main UV purification system & components
Equipment Anatomy
UV Photolysis Purification Equipment
Component Index
01
Air inlet duct
Receives contaminated exhaust and directs it into the internal purification chamber.
02
Inlet distribution chamber
Spreads the incoming gas stream across the purifier cross-section before it reaches the treatment modules.
03
Pre-filtration module
Provides the first treatment stage for intercepting larger particles and protecting the downstream UV section.
04
UV photolysis lamp chamber
Houses the high-energy UV lamps that provide the primary photolysis treatment zone for gaseous pollutants.
05
Catalytic treatment modules
Provide the downstream reaction surface used to support oxidation of intermediate compounds after UV irradiation.
06
Outlet collection chamber
Collects the treated airflow after the purification stages and guides it toward the discharge duct.
07
Electrical control panels
Provide operating controls, status indication and electrical protection for the UV treatment system.
08
Service doors and support base
Provide maintenance access to the internal modules and structural support for stable installation.
05 / UV PHOTOLYSIS ENGINEERING
UV Photolysis Treatment System
Engineering proof
High-energy UV radiation initiates photochemical reactions: molecular excitation, bond cleavage and formation of reactive oxygen-containing species, without bulk thermal combustion of the exhaust stream.
Treatment type
UV photolysis / photochemical oxidation
Temperature
Low-temperature; not bulk incineration
Layout
Modular lamp-chamber design
Pretreatment
Dust, oil mist and droplets should be removed before the UV stage
Combined treatment
Can be integrated with plasma, adsorption or other polishing
Configuration note
Ozone or by-product control is not stated as an automatic function. Removal efficiency and lamp specification require engineering confirmation.
06 / Model data
Technical specifications
Source-stated values retained for engineering documentation. Final specifications depend on the selected configuration, feed material and agreed operating conditions. Specification inputs listed on the published page: Lamp type, wavelength, intensity and quantity; Airflow, pressure drop and fan duty; Installed power and residence time; Inlet concentration range, temperature and humidity limits; Ozone or by-product control; Removal efficiency, outlet emissions and explosion rating; Dimensions, maintenance clearances and service life
07 / Applications
Where the machine sits in a recycling process
Industrial odor control
Selected odor-causing gaseous compounds after composition assessment.
Selected VOC exhaust
Low- or moderate-concentration streams subject to engineering review.
Resin, polymer, coating and surface-treatment exhaust
Compatible process gases after review.
Recycling auxiliary exhaust
After source capture and pretreatment.
08 / Selection inputs
Information for Equipment Selection
01
Material
- Contaminant composition, inlet concentration, temperature and humidity
- Particulate, oil-mist and condensable-aerosol loading
02
Production Requirement
- Airflow, pressure drop and fan duty
- Lamp type, wavelength, intensity and quantity
- Residence time and required outlet limit
- Ozone or by-product control requirement
03
Site & Utilities
- Dimensions, maintenance clearances and lamp service life
- Explosion rating if applicable
09 / Equipment FAQ
Common selection questions
Does UV photolysis convert all contaminants into carbon dioxide and water?
No. Some compatible contaminants may be transformed toward simpler products, but complete mineralization, by-products and outlet results depend on the gas chemistry and reaction conditions and require validation.
Can the unit handle dust or oil mist directly?
Significant dust, oil mist, droplets and condensable aerosol should normally be removed upstream because they can foul lamps and interfere with UV exposure.
Is this the same as plasma or activated-carbon treatment?
No. UV photolysis uses UV radiation and photochemical reactions; plasma uses an electrically generated plasma field; activated carbon adsorbs compatible molecules. They can be combined in a complete treatment system.
Is ozone automatically controlled?
No universal ozone-control performance is stated. Possible ozone and other by-products must be assessed and controlled for the selected configuration and local requirements.
What information is needed for a quotation?
Provide gas flow, temperature, humidity, composition, contaminant concentrations, particulate/mist loading, target outlet limits, operating hours, installation country and available layout.
